Broad selection
Variety of heights and widths from 4.5" x 5" through 5" x 8"
Large selection of finishes allows for consistent door hardware style and design
Choose from a variety of options including non-removable pin, hospital tip, security stud, rounded corners and security fasteners
Offered with a variety of electrification options
Durability
Made from steel with two ball bearing assemblies
Popular SKUs in Quick Ship
Choose from a select number of SKUs available to ship in one week or less
Applications:
Recommended for openings where door must swing up to 180 degrees
Recommended for medium weight doors (<150 lbs.)
Recommended for medium frequency usage (<400 cycles per day)
Recommended for use with a door closer
Material Substrates:
Made from 1040 steel
Certifications:
Certified ANSI/BHMA A156.1 for performance standards
Meets ANSI/BHMA 156.7 for template hinge dimensions
Fasteners:
Packed with fasteners for hollow metal and wood doors
− 12-24 x 1⁄2 UFPHMS, 12 x 1 1⁄4 FPHWS
Models: 5BB1WT
Height x Width | Size (mm) | Gauge
4.5 x 5 114 x 127 | 0.134
4.5 x 6 114 x 152 | 0.134
5 x 6 127 x 152 | 0.146
5 x 7 127 x 178 | 0.146
5 x 8 127 x 203 | 0.146
Available Options:
Non-removable pin (NRP)
Hospital tip (HT)
Security stud - comes standard with NRP (SH)
Rounded Corners - (RC-1⁄4) or (RC-5⁄8)
Security Fasteners - pin-in-socket (SEC)
TW4 Four wire
TW4M* Four wire with monitor
TW8 Eight wire
TW8M* Eight wire with monitor
TW12 Twelve wire
MON* Monitor
* not available on 4x4 or smaller
View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.
BHMA Description Substrate Finish
600 Primer Paint Steel USP
631 Matte Black Steel F-BLK
632 Bright Brass Steel US3
633 Satin Brass Steel US4
639 Satin Bronze Steel US10
640 Oil Rubbed Bronze Steel US10B
641 Oxidized Bronze Steel US10A
646 Satin Nickel Steel US15
651 Bright Chrome Steel US26
652 Satin Chrome Steel US26D
643e/716 Aged Bronze Steel F-643e/716
695 Dark Bronze Painted Steel F-695/US10BE

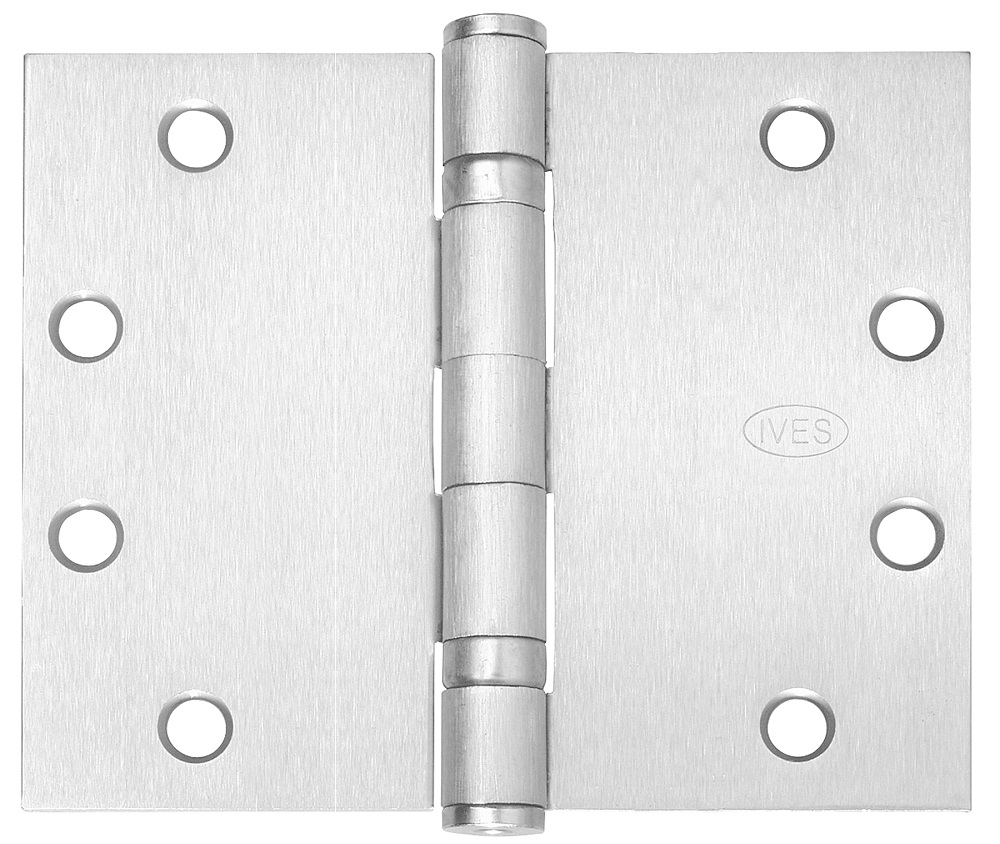

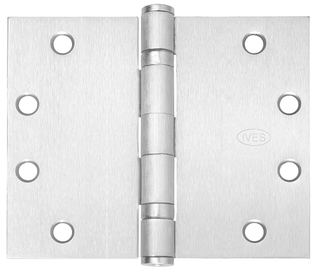

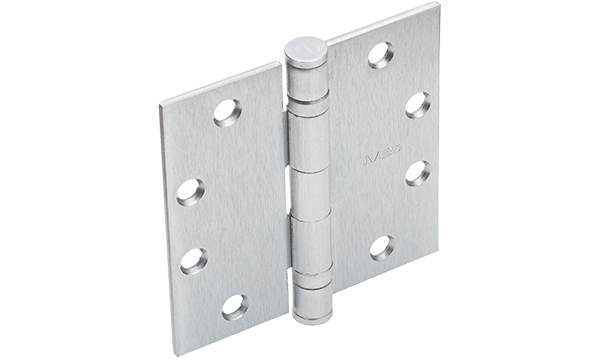

These Grade 2, five knuckle ball bearing wide throw architectural hinges are ideal for medium weight doors with medium frequency and usage. Choose from a variety of sizes, substrates, options, and finishes to meet the needs for your application.
Wide throw door hinges are used on openings where the door must swing up to 180 degrees without binding on protruding trim installed on the face of the frame or wall.
Ives five-knuckle ball bearing wide throw full mortise hinges are designed for use on medium weight doors with medium frequency.
Certified ANSI/BHMA A156.1, our Ives 5BB1WT hinge is available in steel substrate. Ives 5BB1WT hinges are packed standard with hollow metal and wood door fasteners. Choose options such as non-removable pin, hospital tip, security stud, rounded corners, and security fasteners, electrified through wire and monitor options.
