Broad selection

Large selection of finishes allows for consistent door hardware style and design

Designed for both square edged doors or beveled edge doors

Choose from a variety of options including non-removable pin, hospital tip, security stud, rounded corners and security fasteners

Offered with a variety of electrification options

Durability

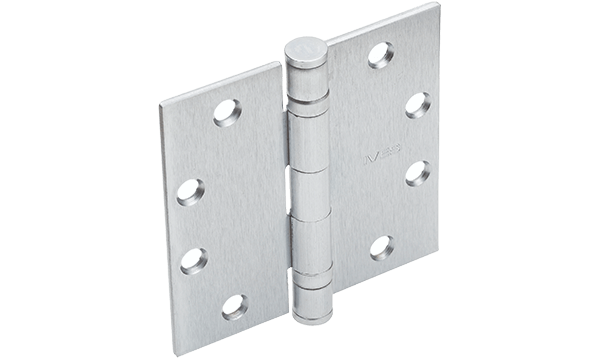

Made from steel with two ball bearing assemblies

Popular SKUs in Quick Ship

Choose from a select number of SKUs available to ship in one week or less

Applications:

Designed to completely clear the opening when door is opened 92°

Recommended for use in ADA door opening applications

Recommended for heavier weight doors (>150 lbs.)

Recommended for high frequency usage (400 cycles per day)

Material Substrates:

Made from 1040 steel or 304 series stainless steel

Certifications:

Certified ANSI/BHMA A156.1 for performance standards

Meets ANSI/BHMA 156.7 for template hinge dimensions

Fasteners:

Packed with fasteners for hollow metal and wood doors

− 12-24 x 1⁄2 UFPHMS, 12 x 1 1⁄4 FPHWS

Models: 5BB1HWSC, 5BB1HWBSC

Height x Width | Size (mm) | Gauge

4.5 |  114 | 0.180

5 |  127 | 0.190

Available Options:

Non-removable pin (NRP)

Hospital tip (HT)

Rounded Corners - (RC-1⁄4) or (RC-5⁄8)

Security Fasteners - pin-in-socket (SEC)

TW4 Four wire

TW4M* Four wire with monitor

TW8 Eight wire

TW8M* Eight wire with monitor

TW12 Twelve wire

MON* Monitor

* not available on 4x4 or smaller

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

BHMA Description Substrate Finish

600 Primer Paint Steel USP

629 Bright Stainless Steel US32

630 Satin Stainless Steel US32D

631 Matte Black Steel F-BLK

632 Bright Brass Steel US3

633 Satin Brass Steel US4

639 Satin Bronze Steel US10

640 Oil Rubbed Bronze Steel US10B

641 Oxidized Bronze Steel US10A

646 Satin Nickel Steel US15

651 Bright Chrome Steel US26

652 Satin Chrome Steel US26D

643e/716 Aged Bronze Steel F-643e/716

695 Dark Bronze Painted Steel F-695/US10BE
