Protection: Prevents damage to the COR coordinators when installing stop-mounted hardware.
Versatile Installation: Suitable for various hardware components, including parallel arm closers and surface vertical rod exit device strikes.
Height Compensation: Requires lowering the stop-mounted hardware to compensate for the height of the coordinator and mounting bracket, ensuring proper alignment.
Compatibility: Specific models designed for compatibility with Von Duprin 8827-F soffit latch.
Material Substrate: All-steel construction for durability and long-lasting performance
Certifications: Meets ANSI/BHMA A156.3 Type 21A
Dimensions:
Door Closed: 1 5⁄8" x 5 3⁄4"
Door Open: 1 5⁄8" x 2 1⁄2"

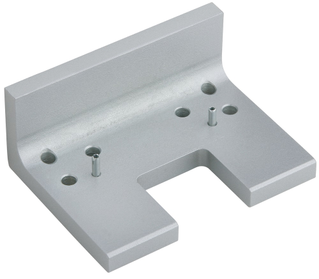

MB1/MB2 Mounting Brackets:
Application: Allows stop-mounted hardware such as parallel arm closers or non-fire-rated surface vertical rod strikes to be installed without damaging the COR coordinator.
Height Adjustment: Stop-mounted hardware needs to be lowered to accommodate the height of the coordinator and mounting bracket.
Dimensions:
Product Jamb Depth Stop Width Dimensions (Width x Depth x Length)
MB1 4 3⁄4" Min Over 2 1⁄2" 4" W x 3" D x 15⁄16" T
MB2 4 3⁄4" Min Up to 2 1⁄2" 4" W x 3 1⁄4" D x 1 5⁄8" T
MB1F/MB2F/MB3F, MB1V/MB2V/MB3V Mounting Brackets:
Application: Designed for installing stop-mounted hardware such as surface vertical rod exit device strikes without damaging the COR coordinators.
Height Adjustment: Latch needs to be lowered to compensate for the height of the coordinator and mounting bracket.
Specific Design: MB-V models are specifically designed for Von Duprin 8827-F soffit latch.
Product Jamb Depth Stop Width Dimensions (Width x Depth x Length)
MB1 4 3⁄4" Min Over 2 1⁄2" 4" W x 3" D x 15⁄16" T
MB2 4 3⁄4" Min Up to 2 1⁄2" 4" W x 3 1⁄4" D x 1 5⁄8" T
MB1F 5" 1 1⁄2" - 2 1⁄4" 4" W x 3" D x 1 5⁄8" T
MB1V 5" 1 1⁄2" - 2 1⁄4" 4" W x 3" D x 1 5⁄8" T
MB2F 5 7⁄8" 2 3⁄8" - 3 1⁄4" 4" W x 3" D x 1 5⁄8" T
MB2V 5 7⁄8" 2 3⁄8" - 3 1⁄4" 4" W x 3" D x 1 5⁄8" T
MB3F 6 7⁄8" Over 3 3⁄8" 4" W x 3 1⁄2" D x 1" T
MB3V 6 7⁄8" Over 3 3⁄8" 4" W x 3 1⁄2" D x 1" T
See Ives catalog for exact finish options available per model.
Ives Mounting Brackets ensure that stop-mounted hardware can be installed seamlessly and securely without compromising the integrity of the COR coordinators. These brackets are designed to accommodate various hardware components, providing flexibility and ease of installation. By compensating for the height of the coordinator and mounting bracket, they ensure proper alignment and functionality.
Ives Mounting Brackets are essential for ensuring that stop-mounted hardware is properly installed without damaging the COR coordinators. These brackets allow for the seamless integration of various hardware components, such as parallel arm closers and surface vertical rod exit devices, while maintaining the integrity of the door system.
Durability
Wide Range of Options
Retrofit
