Seamless Design

Maintains a one-piece appearance on the cover side of the hinge, preserving the clean aesthetic of aluminum geared continuous hinges.

Easy Installation and Maintenance

Installs with the same 5/16" clearance as aluminum geared hinges and works with all decorative cover finishes

The panel can quickly slip in and out of the hinge for easy maintenance and replacement

Allegion Connect Option: Available with the Allegion Connect 8-pin Connector, simplifying connections to other electrical devices

Durability and Reliability

Provides reliable power transfer from the frame to the door, supporting various electrified hardware. Wire design features a Teflon coated wire, greatly improving performance and durability

Each wire is 24 AWG and rated 50 Volts AC/DC at 3.5 amps (max.) continuous, or 16 amps (max.) pulse

5-year warranty

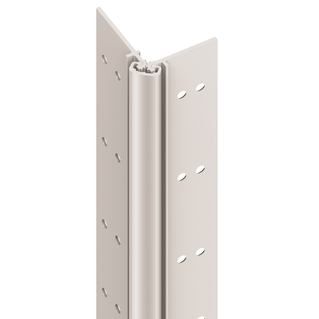

Ives XY aluminum continuous hinges are available with factory modified cutouts to accommodate through-wire panel door requirements. Below is a guide to ensure proper prep and installation.

When ordering indicate the following:

1. Opening size.

2. Handing. LH, RH, LHR or RHR.

3. Manufacturer and model number of the electrical product being used. Example: Von Duprin ETPT2. Because clearances may vary between door and frame manufacturer, and locations can be influenced by the door hardware it is always recommend contacting Ives Customer Technical for specific template information. Below are standard locations for Von Duprin EPT2 or EPT10, and monitor switch.

In accordance with industry standards, all cutouts are made from top edge of door to center line of cut-out. If top of door to top of cut-out is provided, 4 3⁄4" are added to the dimension provided to determine the centerline of the cut-out. This provides an extra 1⁄8" of tolerance to ensure the EPT will fit during installation when varying installation methods are used.

Model Description:

026XY TWP - Full mortise, concealed narrow frame, with removable electrified panel

027XY TWP - Full mortise, 21/4" door, with removable electrified panel

112XY TWP - Full mortise, with removable electrified panel

114XY TWP Full mortise, concealed narrow frame, edge protector, with removable electrified panel

224XY TWP Full mortise, edge protector, with removable electrified panel

Length chart for XY Series continuous hinges

Standard hinge lengths Door height range XY

Min. door height Max. door height TWP CON height

83" N/A 84" 43.5"

85" 84" 86" 45.5"

95" 86" 96" 55.5"

119" 96" 120" 79.5"
