Robust transmission gear design

Features a transmission gear design with bearings evenly spaced every 3" on center, ensuring smooth operation and enhanced durability. The number of bearings varies by hinge size.

Ease of field modifications

The unique mounting pattern allows cutting up to 6" from the bottom while still maintaining double row fasteners. If cut more than 13.5", other modifications may be necessary.

.

Lifetime warranty

Ives continuous hinges carry a limited lifetime warranty with exception of electrified continuous hinges, which carry a 12 month warranty from time of shipment. Learn more at us.allegion.com/warranty

Applications:

Ideal for all aluminum entrances, heavy, high-trafficked doors, or higher security doors in aftermarket or new construction applications

For doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing

Hinge edge clearance for bevel (11/32") or square (5/16") edge doors

Max door width 4' 0"

Max door height 10' 0"

Certifications:

ANSI A156.16 Gade 1 150lb and 300lb door test

UL10C (90 min.)

Fasteners:

12-24 x 3⁄4" Steel self drilling / self tapping Phillips head screw

Models Available:

112HD Full mortise - narrow frame and door leaf, for 1 3⁄4" doors

224HD Full mortise - door edge protector, for 1 3⁄4" doors

Available lengths:

83"

85"

95"

120"

Options

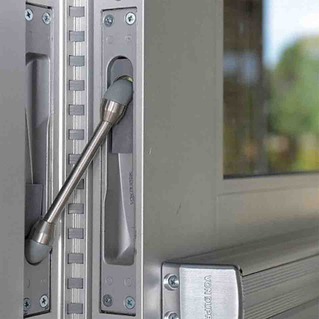

EPT Electric power transfer

Optional mounting hardware

SECHM Security screws - hollow metal door and frame

SECWDHM Security screws - 1⁄2 wood, 1⁄2 hollow metal

SECWDWD Security screws - wood door and frame

TEKWD 1⁄2 Self drill, self tap 1 ⁄2 wood

TF Thread forming screws

WD Wood door and frame

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

BHMA Description Substrate Finish

628 Clear Aluminum Anodized Aluminum US28

710 Dark Bronze Anodized Aluminum 313AN

711 Black Anodized Aluminum 315AN
