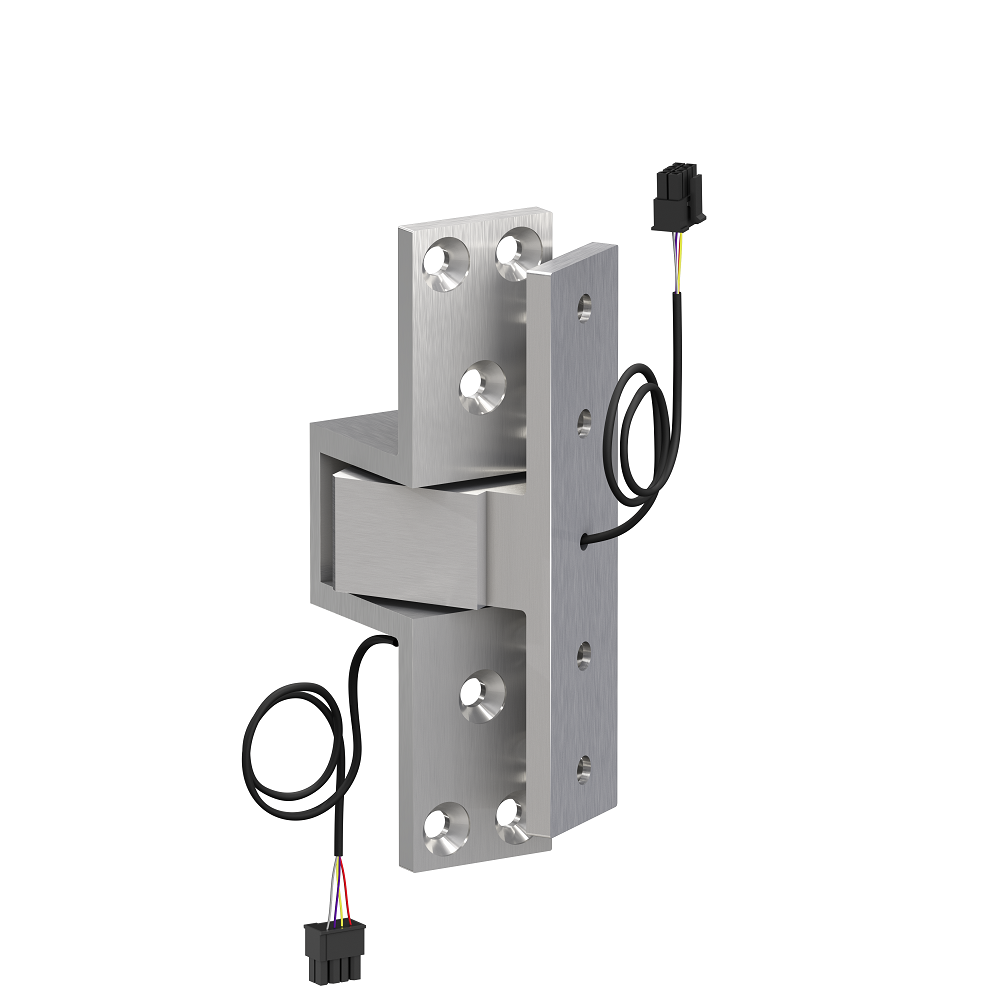

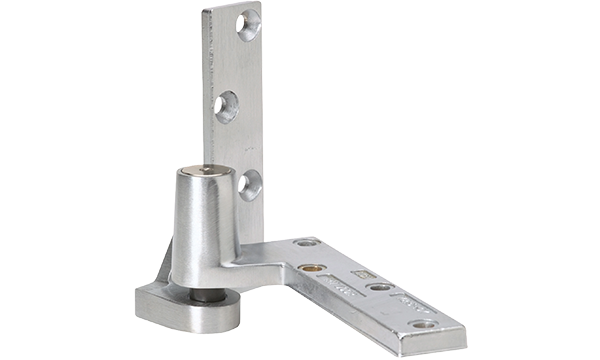

E91105F &91105F Electrified & Non-Electrified Pocket Pivots

Finish:
Image of Finish
Image of Finish

Non-Load Bearing: Specifically designed to support power transfer applications without bearing any door load.

Reliable Power Transfer: Provides electric power transfer to supply power to various electrified door hardware (E91105F model).

High-Quality Wiring: Each wire is 28 AWG, rated for 50 volts AC/DC at 3.5 amps continuous and 16 amps pulse, with a maximum pulse of 400 milliseconds (E91105F model).

Full Mortise Design: Ensures a secure and stable installation.

Door Compatibility: Recommended for use with doors at least 1 ¾" thick.

Opening Range: Allows doors to open a full 90°

Non-Handed: Suitable for both left-hand (LH) and right-hand (RH) installations.

Easy Connectivity: Supplied standard with Allegion Connect 4 or 8-pin Connector (CON) for easy integration with other electrified hardware items (E91105F model).

Material:

E91105F: Made from 304 series stainless steel

91105F: Made from cast brass

Maximum Door Load: 90 pounds per pivot

Recommended Door Thickness: Minimum 1 ¾"

Certifications:

Meets ANSI/BHMA A156.4 standards for performance and durability

UL 10C Listed for 3-hour fire rating

E91105F: Pocket pivot/hinge, power transfer, fire-rated

91105F: Pocket pivot/hinge, fire-rated, non-electrified

Finishes:

Primer Painted (USP): BHMA 600

Bright Stainless (US32): BHMA 629

Satin Stainless (US32D): BHMA 630

Bright Brass (US3): BHMA 632

Satin Bronze (US10): BHMA 639

Aged Bronze (643e/716)

Dark Bronze Painted (SP313/US10BE): BHMA 695

 E91105F & 91105F Electrified & Non-Electrified Pocket Pivots

Pocket pivots are specialized door hinges that allow fire-rated doors to pivot within a recessed pocket in the door frame. This design provides a cleaner, more streamlined appearance compared to traditional hinges, and allows for full door movement without the need for exposed hardware. Pocket pivots are ideal for high-traffic areas, as they offer enhanced durability and a higher aesthetic appeal.  Ives offers electrified and non-electrified pocket pivots, the E91105F and 91105F.
