Versatile Design: Available in offset (9264) and straight (9266) models with a standard rounded tip. Optional flat tip (F) available

Durability: Made from brass or 316 Series Stainless Steel for high durability and corrosion resistance, ideal for external applications

Customizable Lengths: Available in whole 1" increments from 12" to 96". Other lengths available as engineering special, consult customer service

Heavy-Duty Hardware: Includes heavy-duty mounting hardware for secure installation

Material: Solid brass or stainless steel (316 Series)

Certifications: Meets ANSI/BHMA 156.06 standards

Mounting Hardware:

Heavy-duty 3⁄8-16 hardware

Specify door thickness; standard for 1 1⁄2" to 1 3⁄4", optional for 2" and 2 1⁄4" thick doors

Comes standard with through bolt screws and decorative washers

Optional mounting hardware available (see general information section for details)

Mounting hardware for other door thicknesses are available as engineering special, consult customer service

Specify PR when ordering a set of pulls for back-to-back mounting

For one back-to-back machined pull, specify NSGL or PSGL (glass doors)

Additional mounting post required for lengths greater than 96"; Mid posts are optional for other lengths (specify mid post location when ordering)

Recommend the length of the ladder pull should not exceed 4" less than the door height

Available Sizes: 1 1⁄4" Diameter tubular bar

If not specified, standard center to center length for pulls 36" or longer is 16" less than total pull length (8" from each end of the pull); Center to center length must be specified for lengths less than 36"

Example: 72" Long pull has a 56" center to center

If the center to center length is less than half the total pull length, consult customer service

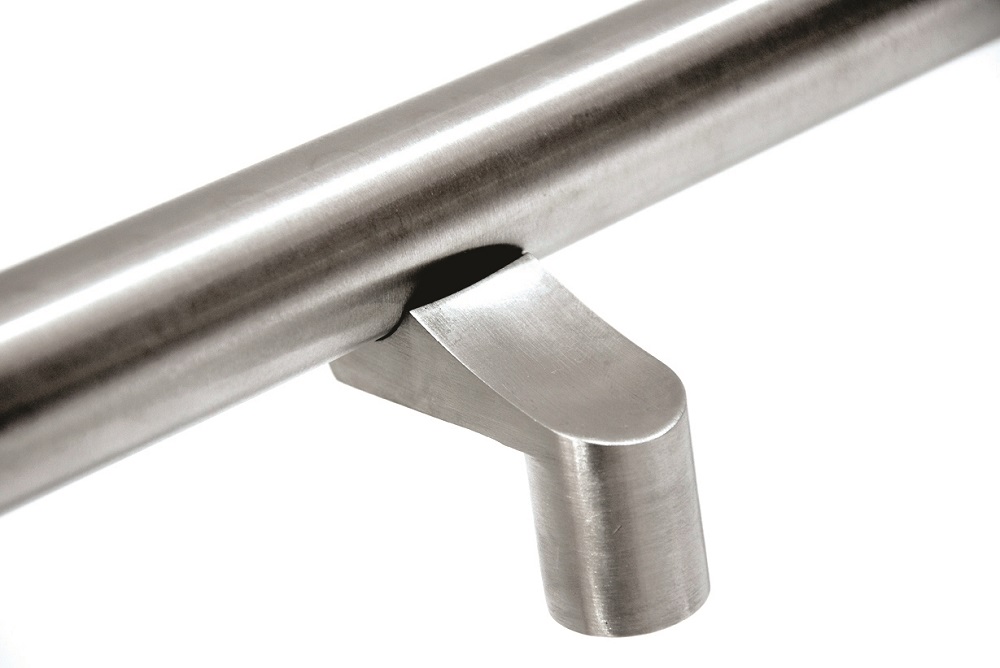

9264 Series (Offset):

9264-72-56:

Projection: 2 3⁄4"

Clearance: 1 1⁄2"

Offset: 1 5⁄8"

Overall length: 72"

Center to center: 56"

9264-36-20:

Projection: 2 3⁄4"

Clearance: 1 1⁄2"

Offset: 1 5⁄8"

Overall length: 36"

Center to center: 20"

9264-24-18:

Projection: 2 3⁄4"

Clearance: 1 1⁄2"

Offset: 1 5⁄8"

Overall length: 24"

Center to center: 18"

9264-18-12:

Projection: 2 3⁄4"

Clearance: 1 1⁄2"

Offset: 1 5⁄8"

Overall length: 18"

Center to center: 12"

9264-12-8:

Projection: 2 3⁄4"

Clearance: 1 1⁄2"

Offset: 1 5⁄8"

Overall length: 12"

Center to center: 8"

9266 Series (Straight):

9266-72-56:

Projection: 2 3⁄4"

Clearance: 1 1⁄2"

Overall length: 72"

Center to center: 56"

9266-36-20:

Projection: 2 3⁄4"

Clearance: 1 1⁄2"

Overall length: 36"

Center to center: 20"

9266-24-18:

Projection: 2 3⁄4"

Clearance: 1 1⁄2"

Overall length: 24"

Center to center: 18"

9266-18-12:

Projection: 2 3⁄4"

Clearance: 1 1⁄2"

Overall length: 18"

Center to center: 12"

9266-12-8:

Projection: 2 3⁄4"

Clearance: 1 1⁄2"

Overall length: 12"

Center to center: 8"

Bright Brass (US3): BHMA 605

Satin Brass (US4): BHMA 606

Oil Rubbed Bronze (US10B): BHMA 613

Satin Nickel (US15): BHMA 619

Bright Stainless (32-316): BHMA 629-316

Satin Stainless (32D-316): BHMA 630-316

Satin Stainless Antimicrobial (US32D-AM): BHMA 630-AM

Matte Black (BLK): BHMA 631

Dark Bronze Powder Coat (SP313/US10BE): BHMA 695
